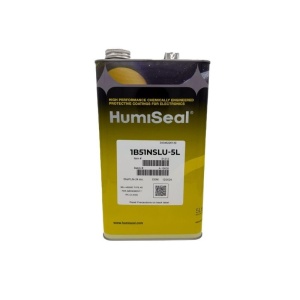

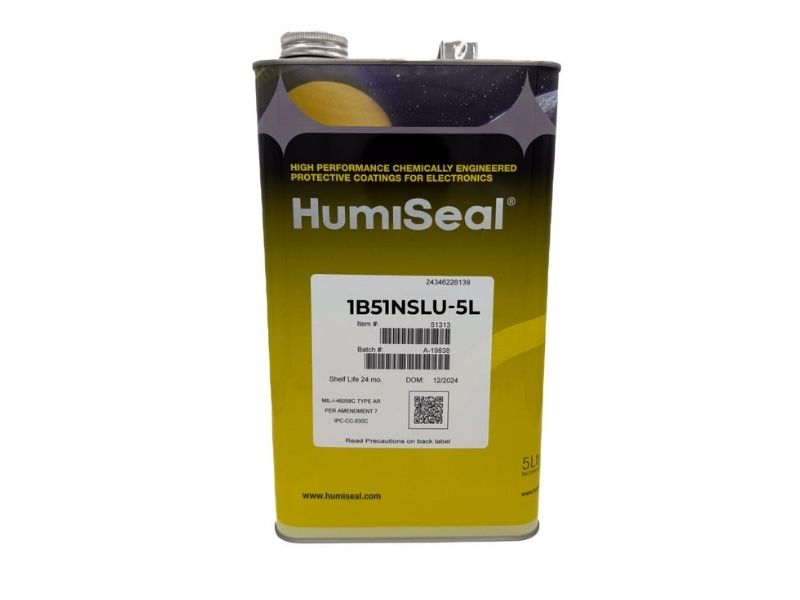

HumiSeal®️ 1B51NSLU is a fast-drying, single-component synthetic rubber conformal coating formulated with methylcyclohexane solvent, which is more environmentally friendly compared to traditional solvents. Thanks to its unique base polymer, it offers extremely low moisture vapor permeability. It provides excellent flexibility, exerts low stress on components, fluoresces under UV light for easy inspection, and is easily repairable. Fully compliant with RoHS Directive 2002/95/EC.
Properties of HumiSeal®️ 1B51NSLU:
Density: 0.81 ± 0.02 g/cm³
Solids Content, by weight: 22 ± 2%
Viscosity: 185 ± 30 centipoise
VOC: 632 g/litre
Tack-free time: 10 minutes
Recommended coating thickness: 25–75 microns
Recommended curing conditions: 24 hours at room temperature or 30 minutes at 76°C
Time required to achieve optimal properties: 7 days
Recommended remover: HumiSeal®️ Stripper 1080
Shelf life at room temperature from date of manufacture: 18 months
Thermal shock (50 cycles according to MIL-I-46058C): -65°C to 125°C
Substrate cleanliness is extremely important for the successful application of conformal coatings. Surfaces must be free from moisture, dirt, oils, flux residues, and all other contaminants. Contaminants beneath the coating may lead to issues that can cause assembly failures.
Store in tightly sealed containers, away from excessive heat or cold. HumiSeal®️ products can be stored at temperatures between 0°C and 35°C. Before use, allow the product to reach ambient temperature (18°C to 32°C) for 24 hours.
