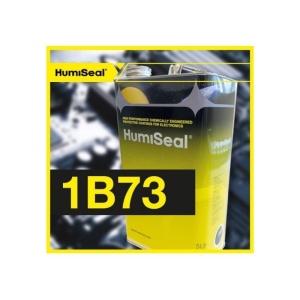

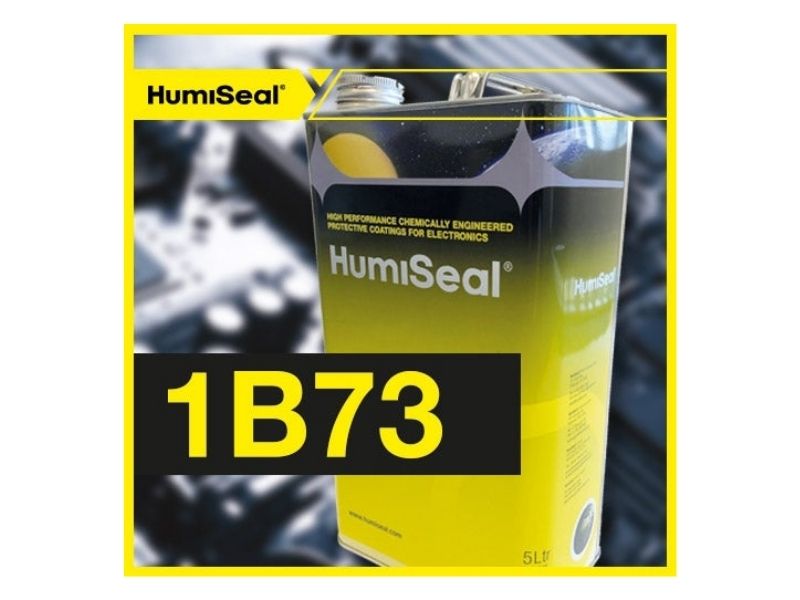

HumiSeal®️ 1B73 is a single-component, fast-drying acrylic conformal coating designed for use on PCBs. It is also available as pre-mixed products in various viscosity ranges, making it suitable for a wide variety of application methods without the need for additional dilution. Once fully cured, the properties of HumiSeal®️ 1B73 are similar to those of its ready-to-use versions.
HumiSeal®️ 1B73 coating offers the following advantages:
• Exhibits excellent flexibility
• Provides protection against moisture and contaminants
• Fluoresces under UV light for easy inspection and is easily repairable
• Meets MIL-I-46058C requirements
• Meets IPC-CC-830 requirements
• Meets IEC61086 and IEC60664-3 requirements
• Approved under UL File Number E105698
• Compliant with REACH and RoHS Directive EU 2015/863
Various ready-to-use formulations and thinners are available for different application methods.
| Product | Viscosity
(cPs) | Solids
(%) | Density
(g/cm3) | VOC
(g/L) | Shelf Life
(DOM, Aylar) |
|---|
| 1B73 |
250 ± 20 |
29.5 ± 2 |
0.92 ± 0.02 |
661.0 |
24 |
| 1B73 PB 23 CPS |
23 ± 5 |
15 ± 1 |
0.90 ± 0.02 |
765.0 |
12 |
| 1B73 PB 38 CPS |
38 ± 5 |
19.5 ± 1.5 |
0.91 ± 0.03 |
728.0 |
12 |
| 1B73 PB 55 CPS |
55 ± 5 |
21 ± 1.5 |
0.91 ± 0.03 |
718.9 |
12 |
| 1B73 PB 65 CPS |
65 ± 5 |
22 ± 2 |
0.91 ± 0.02 |
713.7 |
18 |
| 1B73/73 PB 25 CPS |
25 ± 5 |
15.5 ± 1 |
0.91 ± 0.02 |
769.0 |
12 |
| 1B73/521 PB 25 CPS |
25 ± 5 |
15 ± 1 |
0.90 ± 0.02 |
760.0 |
24 |
| 1B73/521 PB 65 CPS |
65 ± 5 |
21 ± 1 |
0.91 ± 0.02 |
719.0 |
24 |
| 1B73/730EU PB55 |
55 ± 5 |
18.5 ± 1.5 |
0.94 ± 0.02 |
741.7 |
12 |
| 1B73/730EU PB80 |
80 ± 5 |
20.5 ± 1.5 |
0.93 ± 0.02 |
739.4 |
12 |
| 1B73/730EU PB65 |
65 ± 5 |
19.5 ± 1.5 |
0.93 ± 0.02 |
748.7 |
12 |
Tack-free time: 30 minutes
Typical Properties of HumiSeal®️ 1B73 and Ready-to-Use Products in Cured State
Recommended coating thickness: 25–75 microns
Recommended curing conditions: 24 hours at room temperature or 2 hours at 76°C
Time required to achieve optimal properties: 7 days
Recommended remover: HumiSeal®️ Stripper 1080
Thermal shock (50 cycles according to MIL-I-46058C): -65°C to 125°C
Substrate cleanliness is extremely important for the successful application of conformal coatings. Surfaces must be free from moisture, dirt, oils, flux residues, and all other contaminants. Contaminants beneath the coating may lead to issues that can cause assembly failures.
Store in tightly sealed containers, away from excessive heat or cold. HumiSeal®️ products can be stored at temperatures between 0°C and 35°C. Before use, allow the product to reach ambient temperature (18°C to 32°C) for 24 hours.
