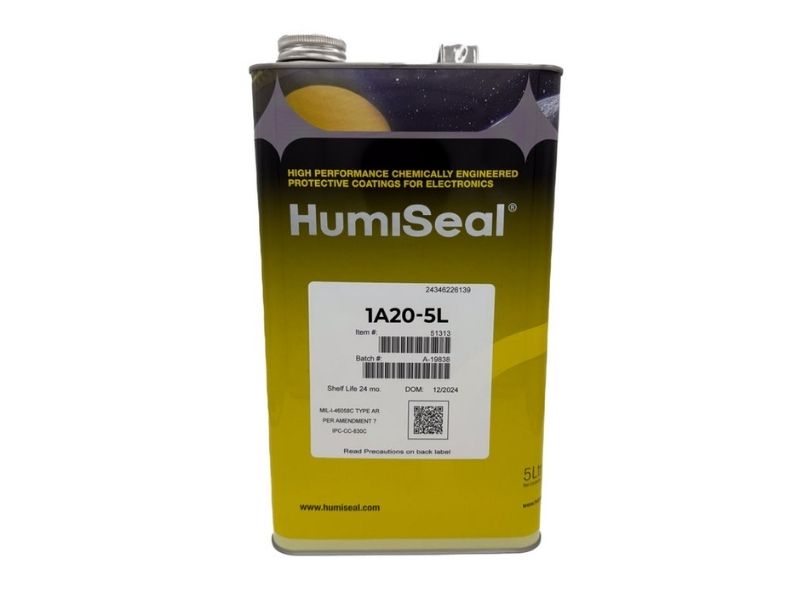

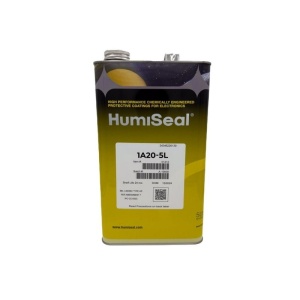

HumiSeal®️ 1A20 is a single-component, chemical-resistant, fast-curing polyurethane conformal coating. It fluoresces under UV light to facilitate inspection.
HumiSeal®️ 1A20 coating meets the following requirements:
• MIL-I-4658C
• IPC-CC-830
• Compliant with REACH and RoHS Directive EU 2015/863
• Recognized under UL File Number E105698
• Compliant with GB30981-2020
Density: 1.02 ± 0.02 g/cm³
Solids Content, by weight: 50 ± 3%
Viscosity: 100 ± 30 centipoise
VOC: 511 g/litre
Tack-free time: 60 minutes
Shelf life at room temperature: 6 months
Recommended coating thickness: 25–75 microns
Recommended curing conditions: 24 hours at room temperature or 3 hours at 76°C
Time required to achieve optimal properties: 7 days at room temperature
Recommended remover: HumiSeal®️ Stripper 1072
Thermal shock (according to MIL-I-46058C): -65°C to 125°C
Flammability: UL94 V-0
Substrate cleanliness is extremely important for the successful application of conformal coatings. Surfaces must be free from moisture, dirt, oils, flux residues, and all other contaminants. Contaminants beneath the coating may lead to issues that can cause assembly failures.
Store in tightly sealed containers, away from excessive heat or cold. HumiSeal®️ products can be stored at temperatures between 0°C and 35°C. Before use, allow the product to reach ambient temperature (18°C to 32°C) for 24 hours.
