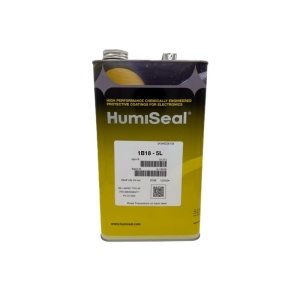

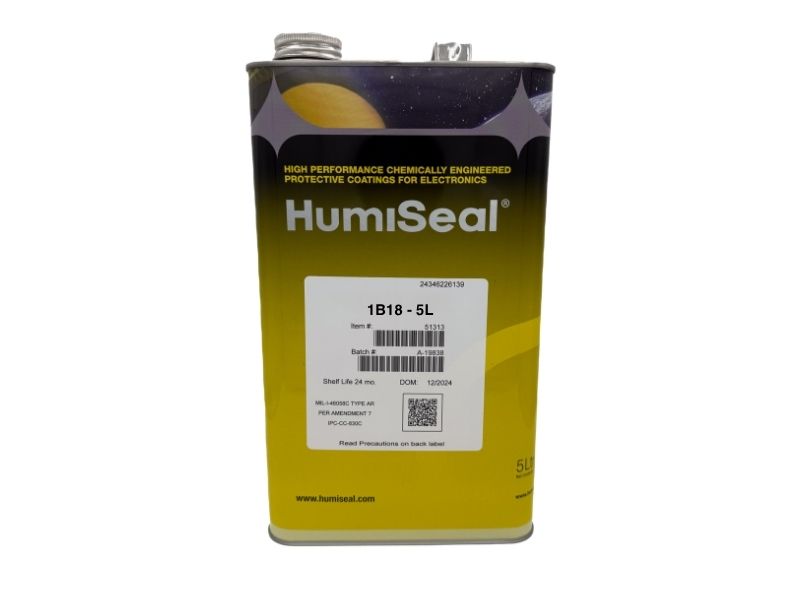

HumiSeal®️ 1B18 is a single-component, fast-drying acrylic conformal coating designed for use on printed circuit boards. It exhibits excellent flexibility and electrical properties, fluoresces under UV light for easy inspection, and is easily repairable. It is compliant with RoHS Directive 2002/95/EC and approved under UL File Number E105698.
Properties of HumiSeal®️ 1B18:
Density: 0.92 ± 0.02 g/cm³
Solids Content, by weight: 30 ± 2%
Viscosity: 250 ± 20 centipoise
VOC: 654 g/litre
Tack-free time: 30 minutes
Recommended coating thickness: 25–75 microns
Recommended curing conditions: 24 hours at room temperature or 2 hours at 76°C
Time required to achieve optimal properties: 7 days
Recommended remover: HumiSeal®️ Stripper 1080
Shelf life at room temperature: 24 months
Thermal shock (50 cycles according to MIL-I-46058C): -65°C to 125°C
Flammability: UL 94 V-0
Substrate cleanliness is extremely important for the successful application of conformal coatings. Surfaces must be free from moisture, dirt, oils, flux residues, and all other contaminants. Contaminants beneath the coating may lead to issues that can cause assembly failures.
Store in tightly sealed containers, away from excessive heat or cold. HumiSeal®️ products can be stored at temperatures between 0°C and 35°C. Before use, allow the product to reach ambient temperature (18°C to 32°C) for 24 hours.
